This page shows how to use Arthropod Easy Capture Virtual Appliance.

If you are a mac user, we recommend to use virtualbox as an appliance player. At first we are going to download VirtualBox and install it.

1. First, you access to the http://www.virtualbox.org/

Arthropod easy capture virtual appliances 00.png

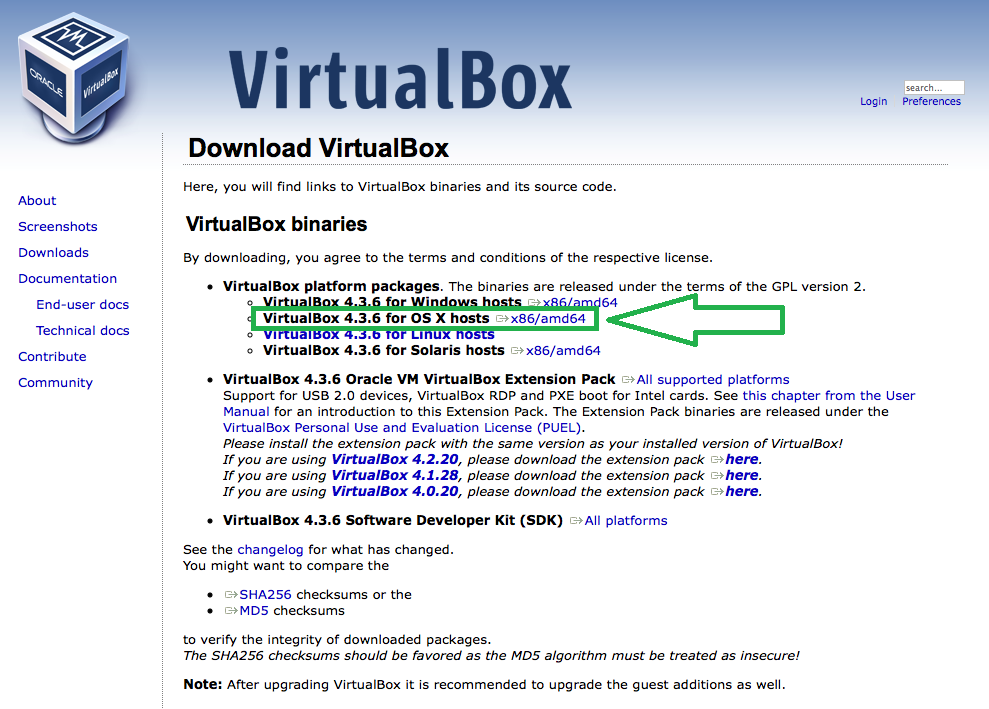

2. Then click download link at the left menu panel. Then click the x86/amd64 link at the VirtualBox for OS X hosts

Arthropod easy capture virtual appliances 01.png


3. Run the downloaded "VirtualBox-4.3.6-91406-OSX.dmg". You should see below windows. Then double click "VirtualBox.pkg" and start installing.

Arthropod easy capture virtual appliances 02.png


4. Now you see the VirtualBox icon in application. Double click the icon and start the VirtualBox.

Arthropod easy capture virtual appliances 03.png

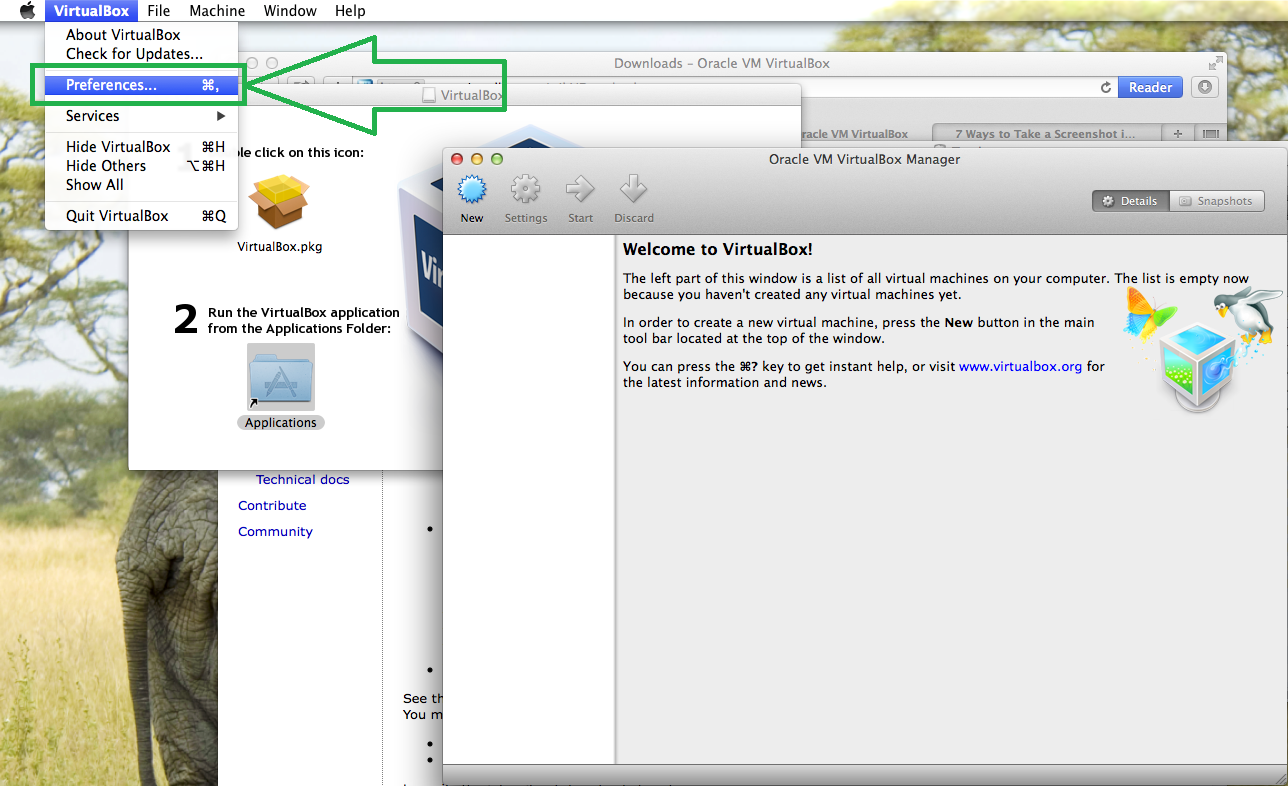

5. Put the VirtualBox at forefront in desktop screen and select "reference" in VirtualBox menu bar.

Arthropod easy capture virtual appliances 04.png



6. Now you select the "Network"(1) then select "Host-only Network". And click plus sign icon(3). Then "vboxnet0" or similar is added in the list. After than, you click driver-looking icon(4).

Arthropod easy capture virtual appliances 05.png


7. Now you check the "IPv4 Address" and "IPv4 Network Netmask". You don't need to change anything in this step. Then select "DHCP Server" tap.

Arthropod easy capture virtual appliances 07.png

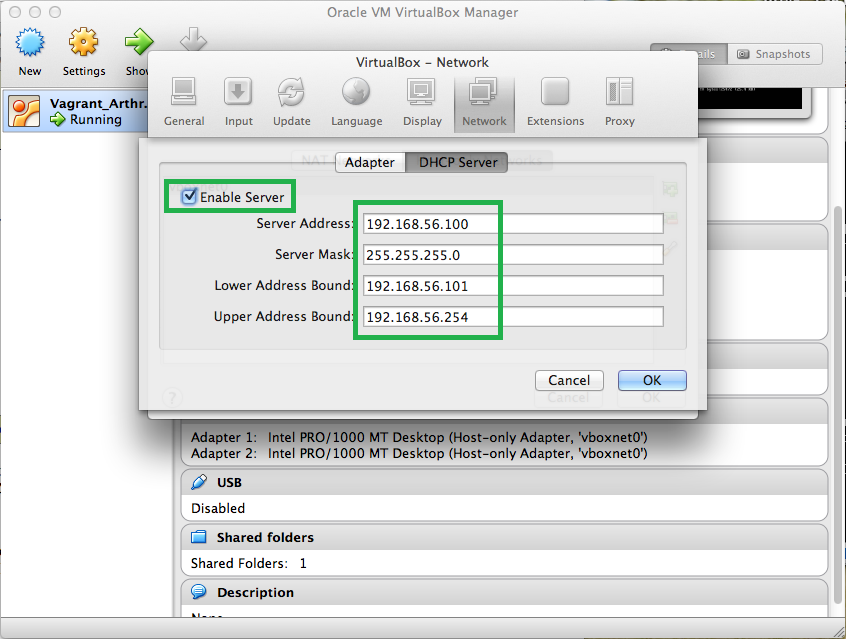

8. At first, the "DHCP Server" is unchecked and every other fields are blank. Now you check the radio button and fill the up field as below. The first three address range should match with the first three address range in "IPv4 Address" of "Adapter" tab.

Arthropod easy capture virtual appliances 06.png


9. Now you download arthropod easy capture virtual appliance from link below.

http://www.acis.ufl.edu/~xetron/Downloads/ArthropodEasyCaptureAppliance_virtualbox_v0.2.zip

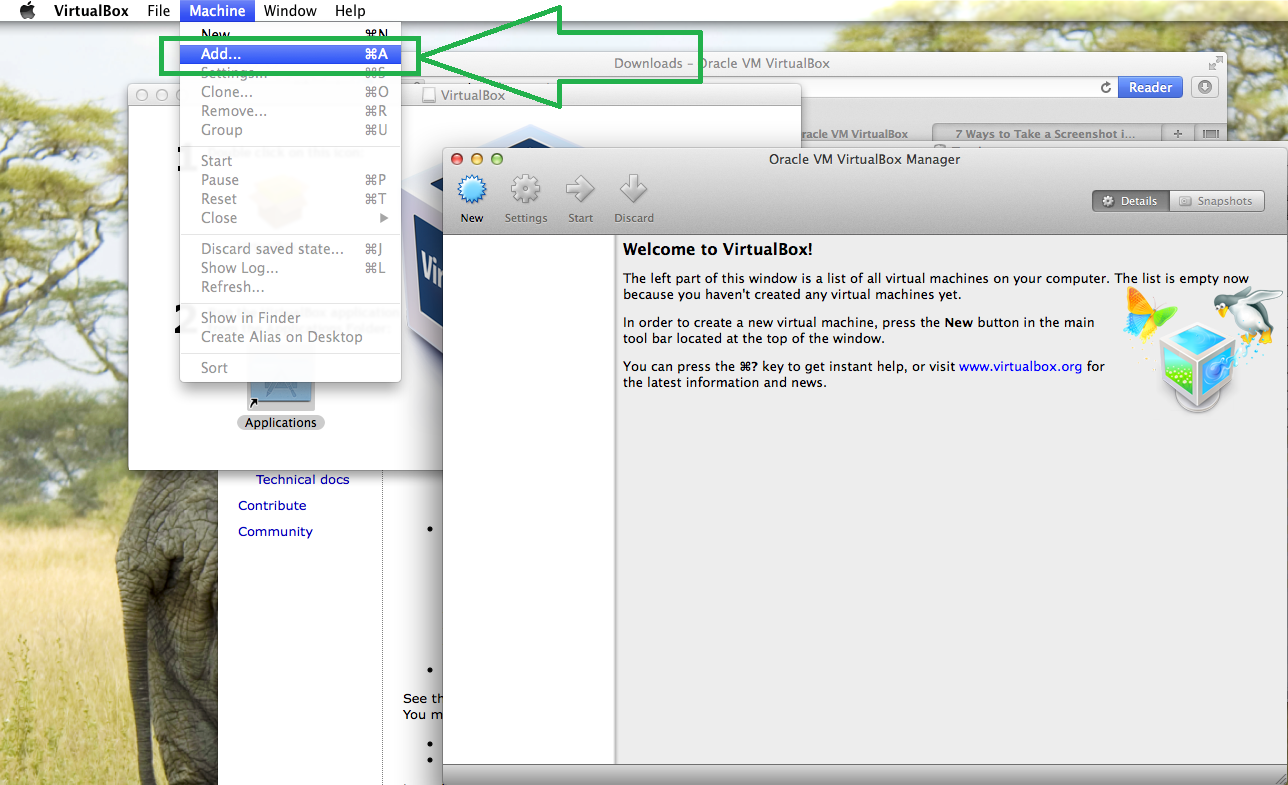

10. After the completion of download, now we are ready to start the appliance. Put the VirtualBox at the forefront of desktop screen and select "Machine - Add" in the menu bar.

Arthropod easy capture virtual appliances 09.png

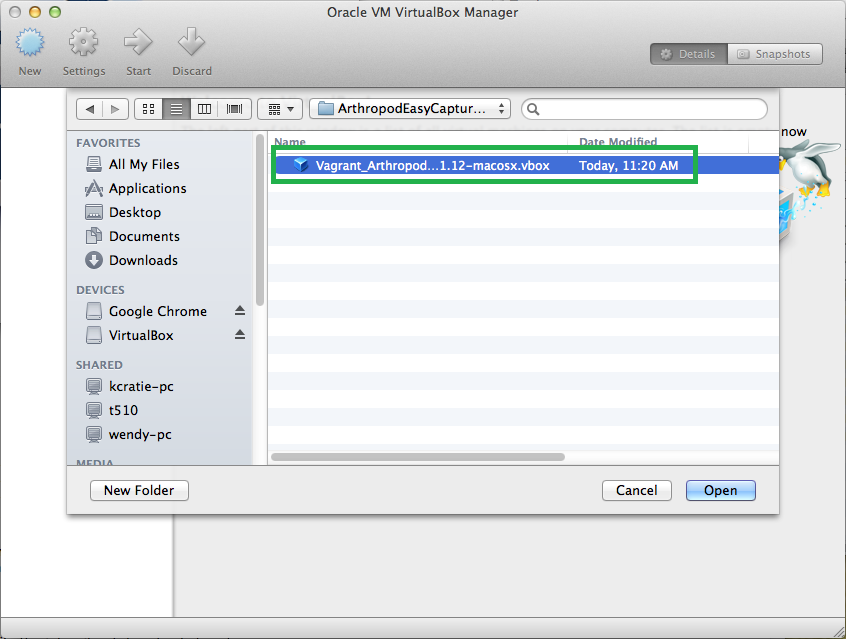

11. Select the downloaded appliance and open it.

Arthropod easy capture virtual appliances 08.png


12. Click "start" button and the appliance starts to run.

Arthropod easy capture virtual appliances 10.png

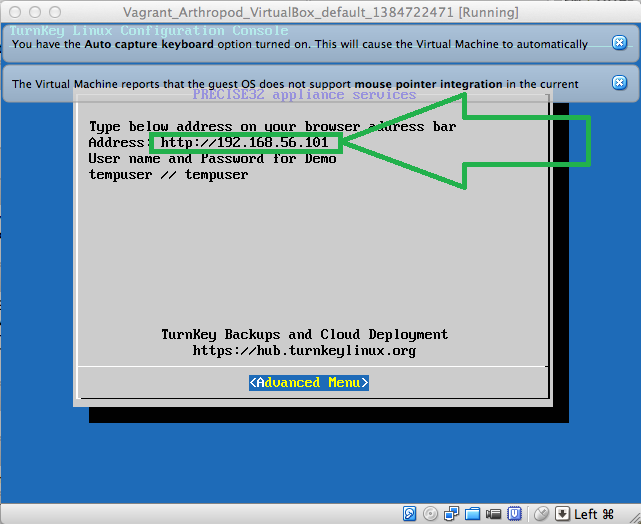

13. After several minutes, you see as below. The appliance shows the IP address that we about to access.

Arthropod easy capture virtual appliances 11.png


14. Enter the above address to web browser's address bar.

Arthropod easy capture virtual appliances 12.png
